48.48 E Incabox ONE

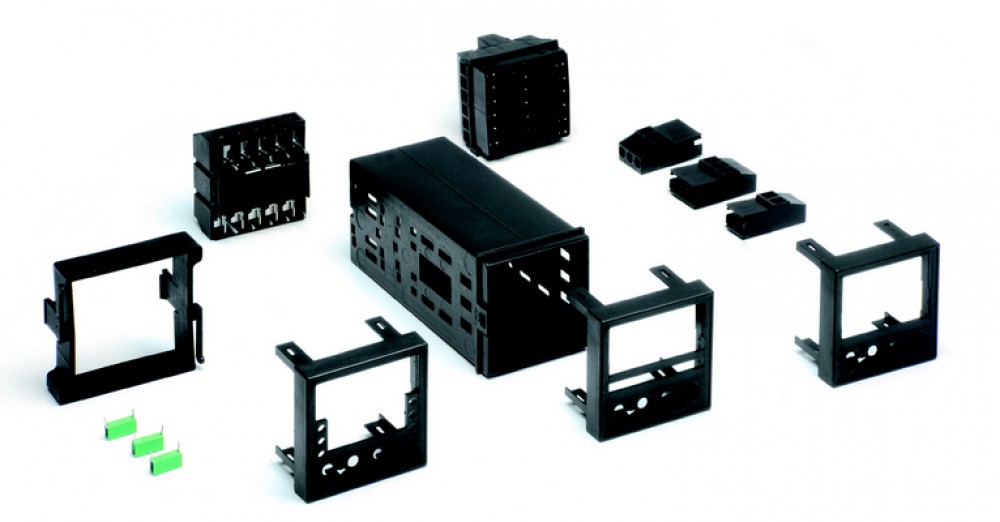

Panel mounting enclosure for electronic products according to DIN 43700 manufactured to remove the electronic devices from the front side
FEATURES

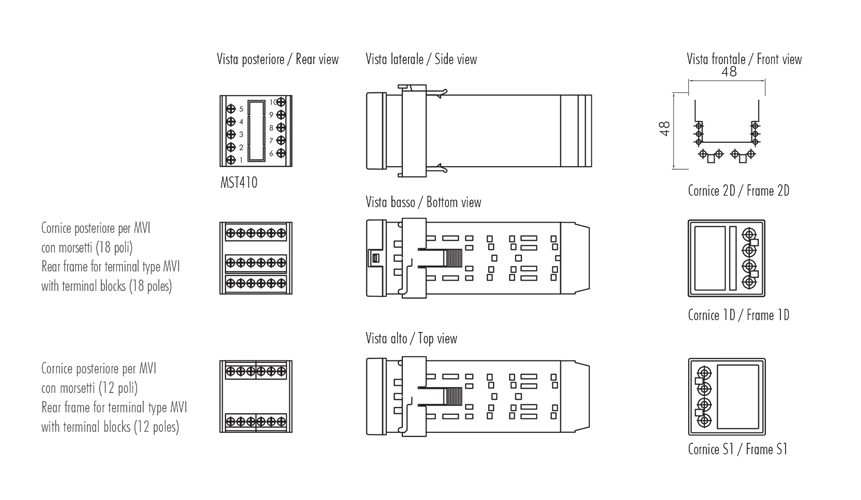

Front: Single display version (1D): no. 3 DIGIT (0.4” h = 7 mm) no. 4 SWICTHES max. (h = 7 mm) no. 6 LED max. (diam. 3 mm) Double display version with main indicator (2D): n. 4 DIGIT (0.3”; h = 7 mm) Secondary indicator: n.4 DIGIT (0.2”; h = 6 mm) n. 4 SWICTHES max. (h = 7 mm) n. 6 LED max. (diam. 3 mm) Special version with space for 29 x 40 indicator (S1): n. 4 SWICTHES max. (h = 7 mm) available upon request only. Rear: Version with 18 screw type connections. Version with 10 screw type connections. Assembly method: This enclosure has been designed to insert the PCBs which are already mounted in their frame holder from the front side.
Technical specs
| Material | self-extinguishing ABS |
| Colour | Black |
| Dimensions | 48x48x69/83/109 |
| E | It indicates the product with the PCB removable from the front side |
