48.96 E Incabox ONE

FEATURES

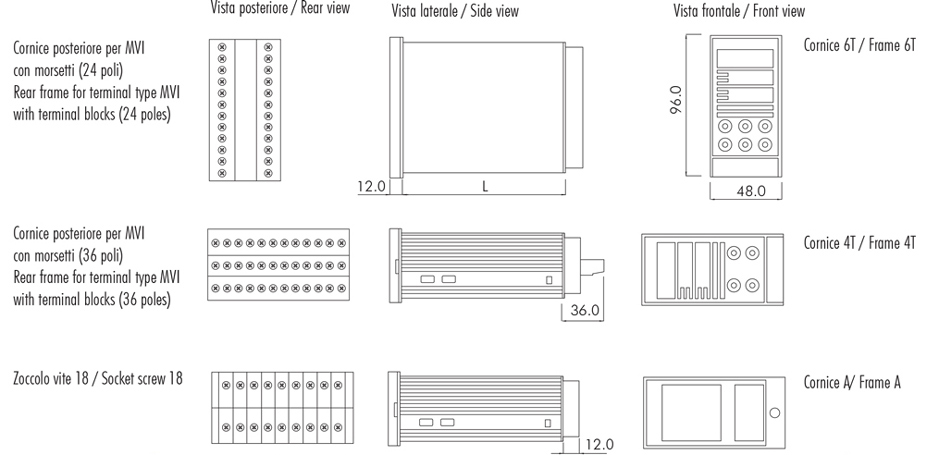

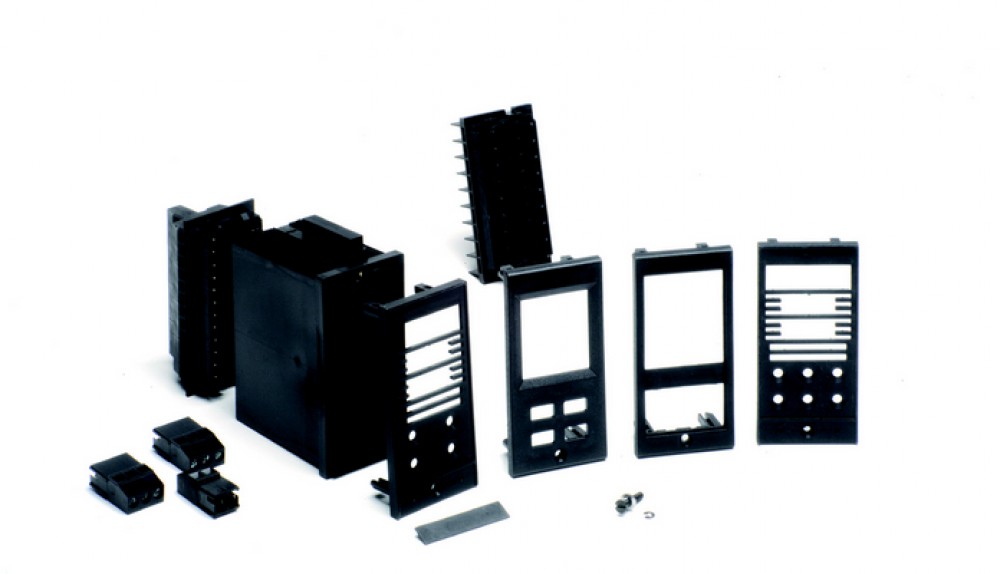

Front: 6T version with top indicator: n. 5 DIGIT (0.4”; h = 7 o 8 mm) version with intermediate indicator. N. 4 DIGIT (0.3” h = 6 mm) version with lower indicator n. 4 DIGIT (0.3”; h = 6 mm) n. 12 LED max. (diam. 3 mm) n. 6 SWICTHES max. (h = 7 mm). It is possible to obtain different configurations by eliminating the engraved plastic splines on the left side of the front panel and the plastic pieces that separate the display (h = 2 mm). 4T version the features are like those indicated in the 6 SWICTHES version but it is suitable to 4 SWICTHES only and this has more operating surface. STANDARD A version with an indicator area 44 x 38 and an area for switches 20 x 38; suitable to use of displays with h = 8 mm. Rear: Version with n. 36 screwstype connections. Version with n. 18 (max) screws-typeconnections. Version with n. 24 screws-type-connections. Assembly method: This enclosure has been designed to insert the PCBs which are already mounted in their frame holder from the front side.

Technical specs
